Name: ThinAir® Hand Dryer, ADA-Compliant - Graphite #TA-GR
SKU: 61430

14 Second Dry Time

950 Watts (Heat On)

330 Watts (Heat Off)

Meets 4" ADA protrusion guidelines

High, Medium, Low, Off Heat Control

Adjustable Speed and Sound Controller

Washable Pre-Filter

Description

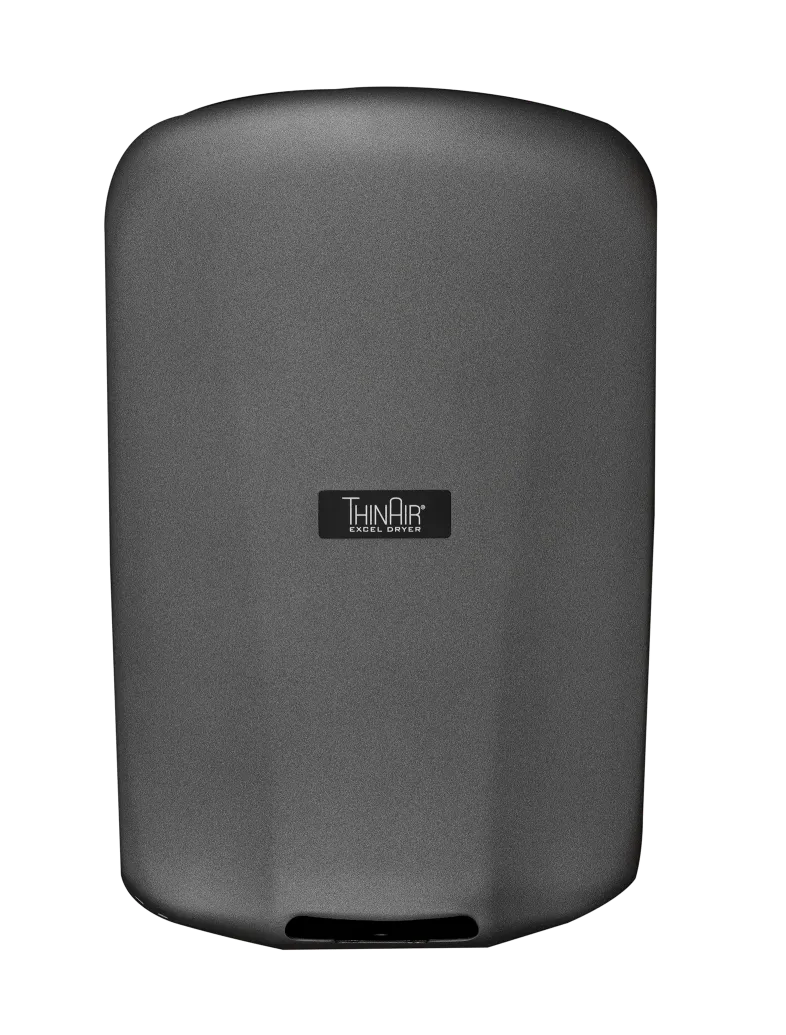

The ThinAir® Hand Dryer is a high-efficiency model that is surface-mounted and ADA compliant.

ThinAir dries hands in 14 seconds*, uses 950 watts or less and has a slimmer profile to
meet ADA compliance standards.

Control includes a speed and sound control mechanism, adjustable heat control with High, Medium, Low, Off Setting and a filter sensor which is activated should the filter become clogged. washable pre-filter.

Specification

Available in 110/120, & 208-277 voltage
Cover: Graphite
9 5/32" W X 13 15/16" H X 4" D
Weight: TA-GR - 8 lbs.
(1/2 HP / 30,000 RPM high, 20,000 RPM -low) which provides air velocity of 16,000 LFM at the air outlet
141°F (61°C) at a 72°F (22°C) ambient room temperature at the outlet and 101°(38°C)at the hands (4 inches [102 mm] below air outlet).
Heating element is constructed of Nichrome wire and mounted inside the blower housing, thereby being vandal-resistant.
Control assembly is activated by an infrared optical sensor
35-second lock-out feature
5 Year Warranty
